Features:

1：Wedge-type design, driven by single or dual piezoelectric motors

2：Power-off self-locking, integrated braking function, zero backlash

3：Minimum step distance: 30 nm, with grating position feedback

4：Compact structure, can be directly stacked with other stages for multi-axis applications

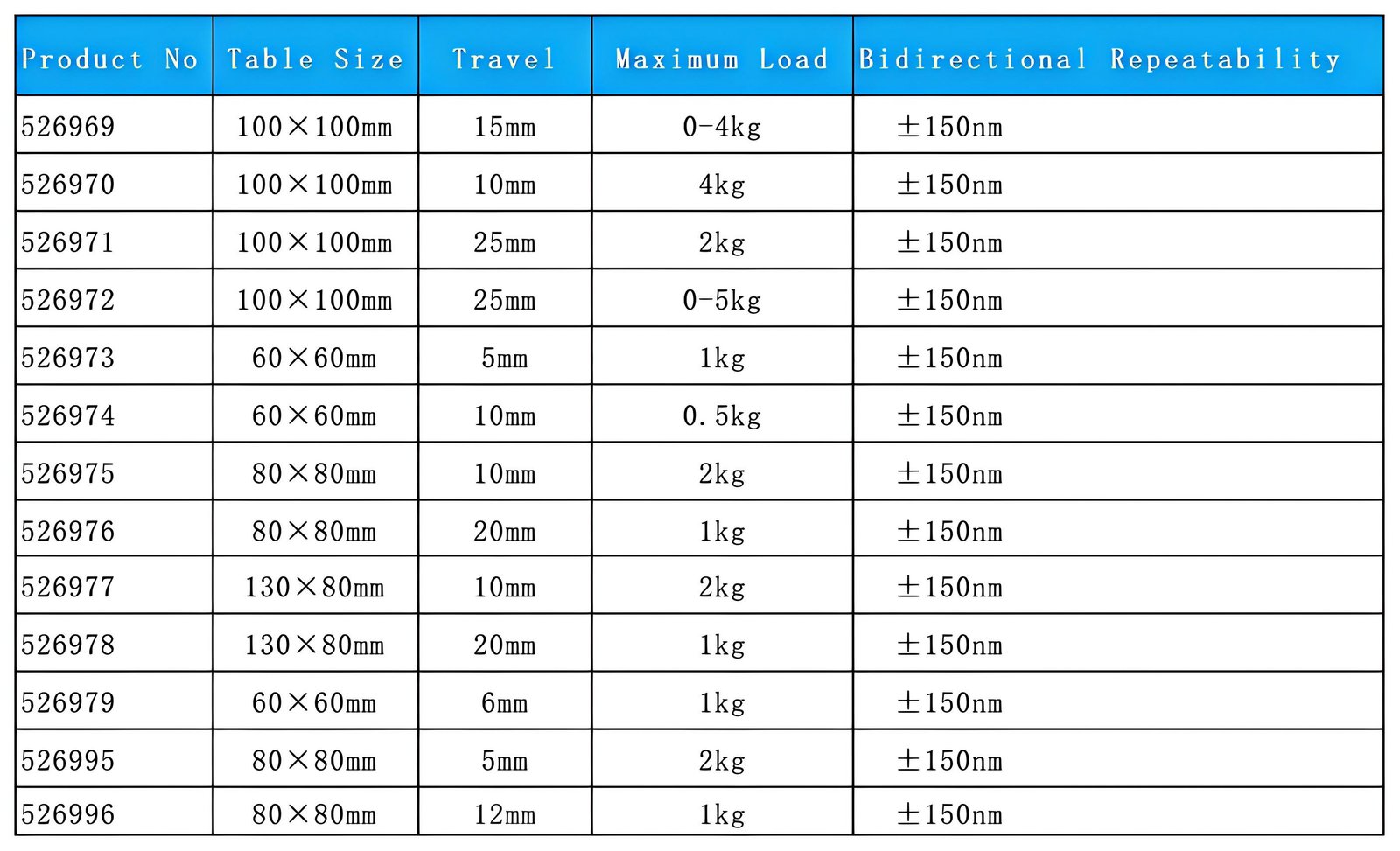

5：Analysis of the configuration relationship between fixed load and travel range for the vertical lift stage. Example: For a selected external dimension specification of 526973, a fixed load of 1 kg corresponds to a travel range of 5 mm; the greater the load, the smaller the travel range:

6：For fixed-load type lift stages, use within ±50 g of the rated load value. For other load requirements, customized options are available for any value between 0 and the maximum load
